SKF NNCF 5034 CV

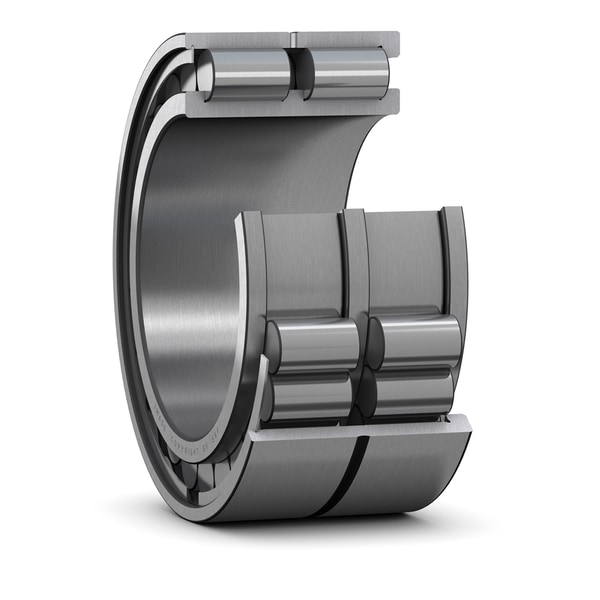

Double row full complement cylindrical roller bearing, NNCF design, with relubrication feature
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
170.0 mm
Bore diameter
D
260.0 mm
Outside diameter
B
122.0 mm
Width
d1
198.5 mm
Shoulder diameter inner ring
D1
231.5 mm
Shoulder diameter outer ring
b1
7.0 mm
Width annular lubrication groove outer ring
K
4.0 mm
Diameter lubrication hole (outer ring)
s
6.0 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
r1,2
2.1 mm
Chamfer dimension (open bearings)
r3,4
1.1 mm
Chamfer dimension
mass
22.4 kg
Product net weight
