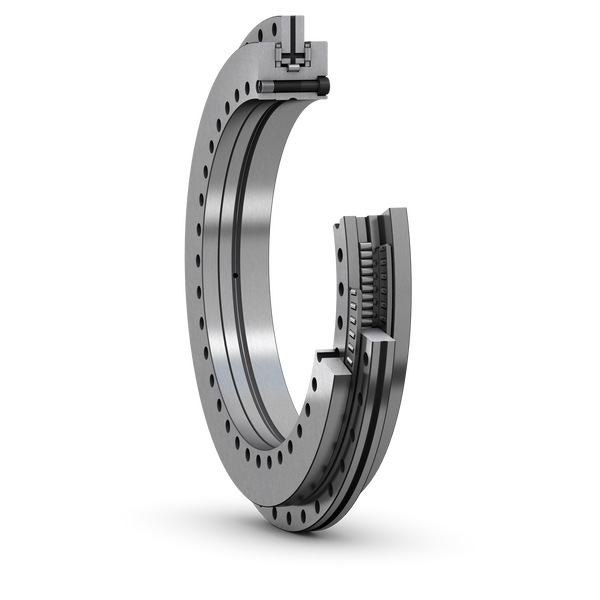

SKF NRT 580 C/MAR1A
Super-precision axial-radial cylindrical roller bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
580.0 mm
Bore diameter
D
750.0 mm
Outside diameter
H
90.0 mm
Height
d1
699.2 mm
Shoulder diameter inner ring - large shoulder
dMS
699.7 mm
Diameter of measuring scale
C
30.0 mm
Outer ring (housing washer) width
H1
60.0 mm
Distance
J
610.0 mm
Inner ring (shaft/locating washer) hole pitch circle diameter
J1
720.0 mm
Outer ring (housing washer) hole pitch circle diameter
N
11.4 mm
Inner ring (shaft/locating washer) through hole
N1
18.0 mm
Inner ring (shaft washer) sinkhole
N2
11.4 mm
Outer ring (housing washer) through hole
a
11.0 mm
Inner ring (shaft washer) sinkhole depth
r1
1.0 mm
Outer ring (housing washer) chamfer dimension
r2
1.0 mm
Inner ring (shaft/locating washer) chamfer radius
mass
89.8 kg
Product net weight
