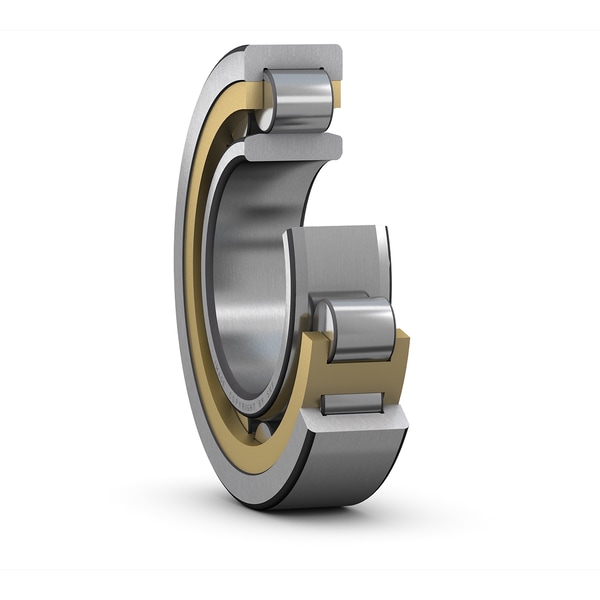

SKF NU 1036 ML
Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
180.0 mm
Bore diameter
D
280.0 mm
Outside diameter
B
46.0 mm
Width
D1
246.1 mm
Shoulder diameter of outer ring
F
205.0 mm
Raceway diameter of inner ring
r1,2
2.1 mm
Chamfer dimension
r3,4
2.1 mm
Chamfer dimension
s
6.1 mm
Permissible axial displacement
mass
10.4 kg
Product net weight
