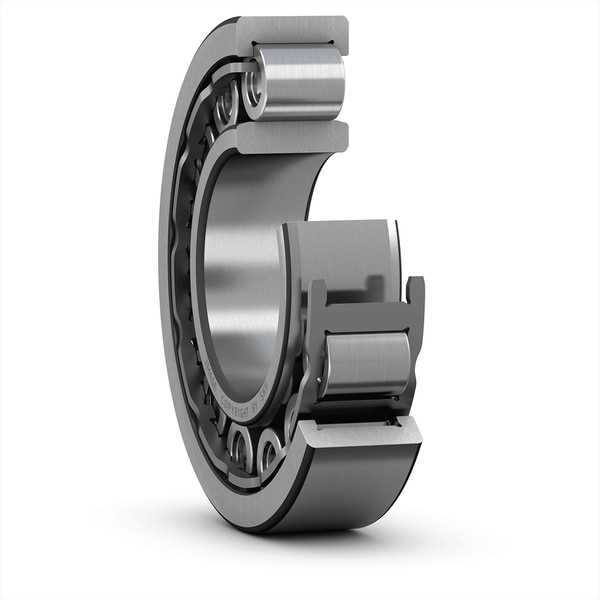

SKF NU 2219 ECJ
Single row cylindrical roller bearing, NU design
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
95.0 mm
Bore diameter
D
170.0 mm
Outside diameter
B
43.0 mm
Width
D1
147.4 mm
Shoulder diameter of outer ring
F
112.5 mm
Raceway diameter of inner ring
r1,2
2.1 mm
Chamfer dimension
r3,4
2.1 mm
Chamfer dimension
s
3.0 mm
Permissible axial displacement
mass
3.91 kg
Product net weight
