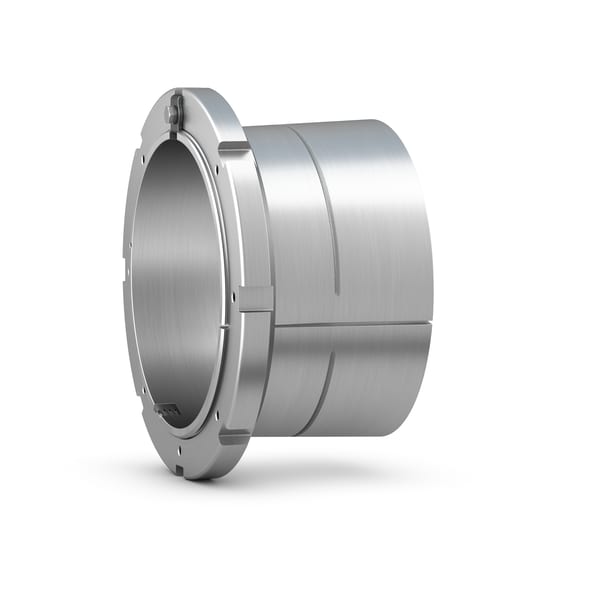

SKF OH 30/670 H
Adapter sleeve for oil injection mounting with HM lock nut and MS locking clip, metric dimensions
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d1
630.0 mm
Bore diameter
d
670.0 mm
Outside diameter small taper
d3
780.0 mm
Outside diameter lock nut
B1
324.0 mm
Width
B
80.0 mm
Width lock nut
B5
101.5 mm
Width lock nut including locking clip
G
Tr670x6
Thread
G2
G 1/8
Thread oil supply duct
G3
12.0 mm
Length thread for oil supply duct
A
8.0 mm
Distance bore - oil supply duct
mass
190.0 kg
Product net weight
