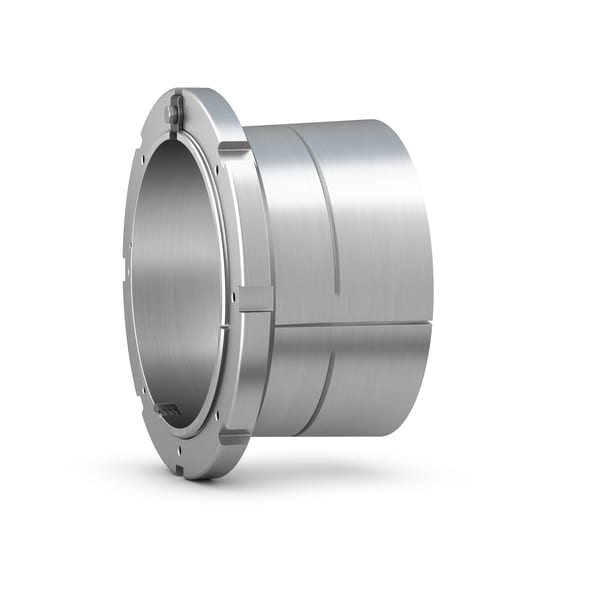

SKF OH 3068 H
Adapter sleeve for oil injection mounting with HM lock nut and MS locking clip, metric dimensions
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d1
320.0 mm
Bore diameter
d
340.0 mm
Outside diameter small taper
d3
400.0 mm
Outside diameter lock nut
B1
187.0 mm
Width
B
45.0 mm
Width lock nut
B5
58.0 mm
Width lock nut including locking clip
G
Tr340x5
Thread
G2
M6
Thread oil supply duct
G3
10.0 mm
Length thread for oil supply duct
A
3.5 mm
Distance bore - oil supply duct
mass
26.1 kg
Product net weight
