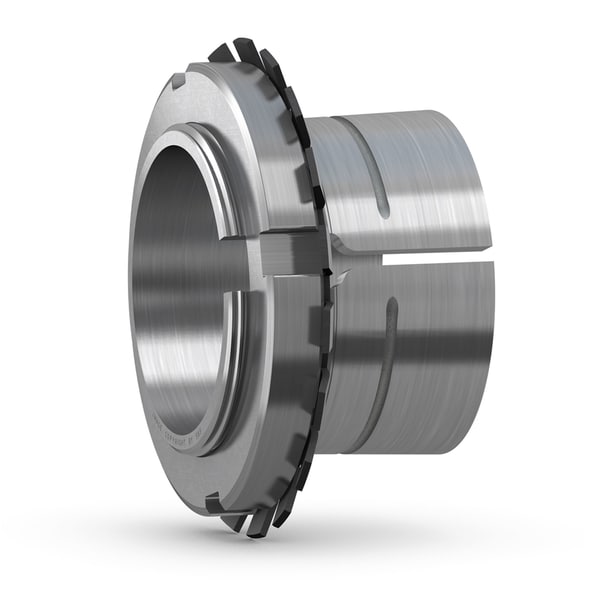

SKF OH 3156 H
Adapter sleeve for oil injection mounting with HM .. T lock nut and MB lock washer, metric dimensions
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d1
260.0 mm
Bore diameter
d
280.0 mm
Outside diameter small taper
d3
350.0 mm
Outside diameter lock nut
B1
195.0 mm
Width
B
38.0 mm
Width lock nut
B4
41.0 mm
Width lock nut including lock washer
G
Tr280x4
Thread
G2
M6
Thread oil supply duct
G3
10.0 mm
Length thread for oil supply duct
A
3.9 mm
Distance bore - oil supply duct
mass
23.5 kg
Product net weight
