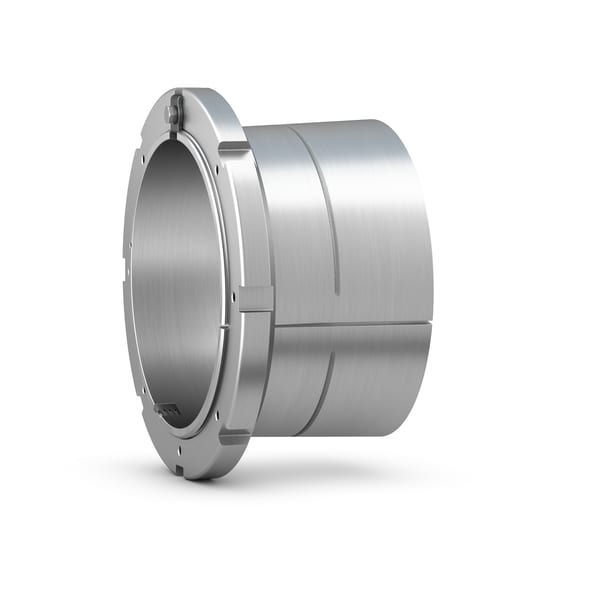

SKF OH 3156 HTL
Adapter sleeve for oil injection mounting with HM lock nut and MS locking clip, metric dimensions
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d1
260.0 mm
Bore diameter
d
280.0 mm
Outside diameter small taper
d3
330.0 mm
Outside diameter lock nut
B1
195.0 mm
Width
B
38.0 mm
Width lock nut
B5
50.0 mm
Width lock nut including locking clip
G
Tr280x4
Thread
G2
M6
Thread oil supply duct
G3
10.0 mm
Length thread for oil supply duct
A
3.9 mm
Distance bore - oil supply duct
mass
19.6 kg
Product net weight
