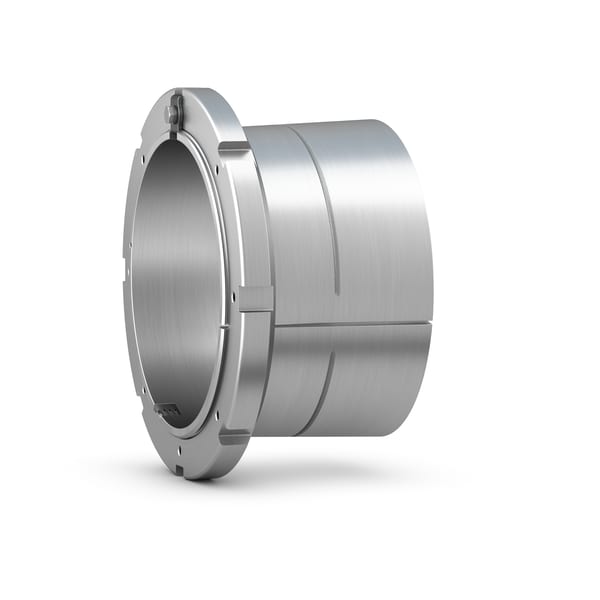

SKF OH 3280 H
Adapter sleeve for oil injection mounting with HM lock nut and MS locking clip, metric dimensions
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d1
380.0 mm
Bore diameter
d
400.0 mm
Outside diameter small taper
d3
520.0 mm
Outside diameter lock nut
B1
328.0 mm
Width
B
62.0 mm
Width lock nut
B5
80.0 mm
Width lock nut including locking clip
G
Tr 400x5
Thread
G2
M6
Thread oil supply duct
G3
9.0 mm
Length thread for oil supply duct
A
4.0 mm
Distance bore - oil supply duct
mass
87.0 kg
Product net weight
