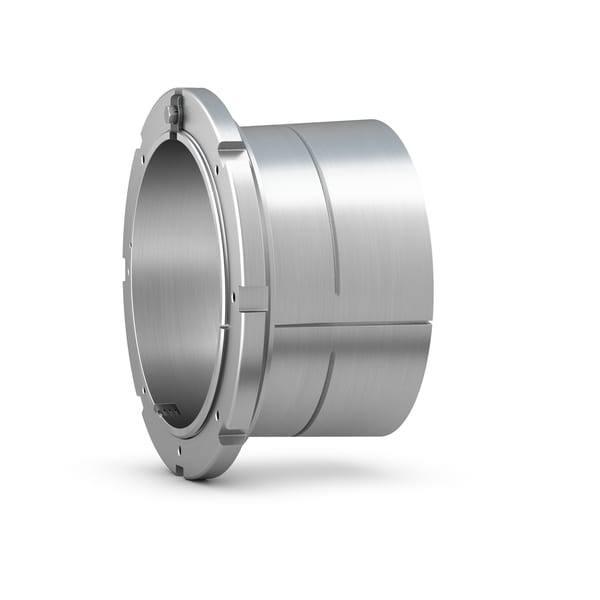

SKF OH 39/710 HE
Adapter sleeve for oil injection mounting with KMFE lock nut, metric dimensions
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d1
670.0 mm
Bore diameter
d
710.0 mm
Outside diameter small taper
d3
830.0 mm
Outside diameter lock nut
B1
286.0 mm
Width
B
90.0 mm
Width lock nut
B5
112.0 mm
Width lock nut including locking clip
G
Tr 710x7
Thread
G2
G 1/8
Thread oil supply duct
G3
13.0 mm
Length thread for oil supply duct
A
8.0 mm
Distance bore - oil supply duct
mass
183.0 kg
Product net weight
