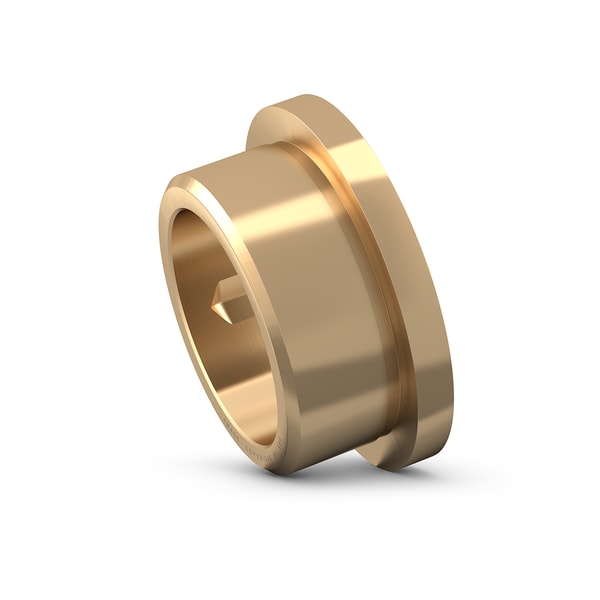

SKF PBMF 11013080 M1G1
Solid bronze flanged bushing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
110.0 mm
Bore diameter
D
130.0 mm
Outside diameter
B
80.0 mm
Width
D1
140.0 mm
Outside diameter flange
B1
8.0 mm
Width flange
a
4.0 mm
Distance side face - axial lubrication groove
h
111.5 mm
Distance bottom axial lubrication groove - opposite bore diameter
α
124.0 °
Aperture angle axial lubrication groove
mass
2.82 kg
Product net weight
