SKF PBMF 405025 M1G1

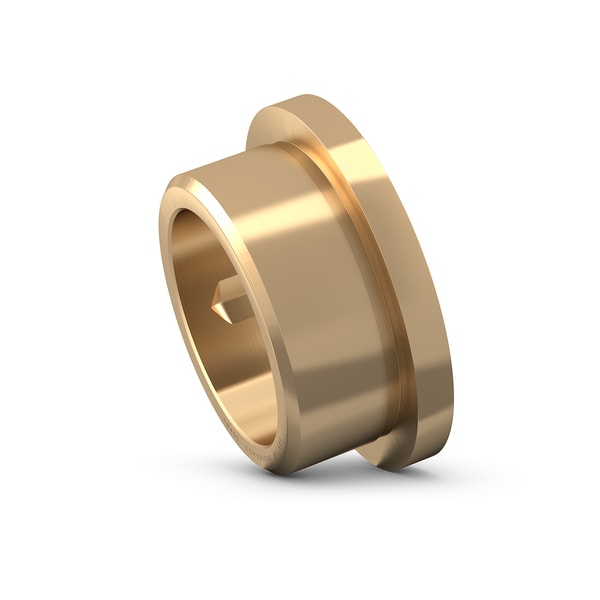

Solid bronze flanged bushing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
40.0 mm
Bore diameter
D
50.0 mm
Outside diameter
B
25.0 mm
Width
D1
60.0 mm
Outside diameter flange
B1
6.0 mm
Width flange
a
3.0 mm
Distance side face - axial lubrication groove
h
41.0 mm
Distance bottom axial lubrication groove - opposite bore diameter
α
124.0 °
Aperture angle axial lubrication groove
mass
0.2 kg
Product net weight
