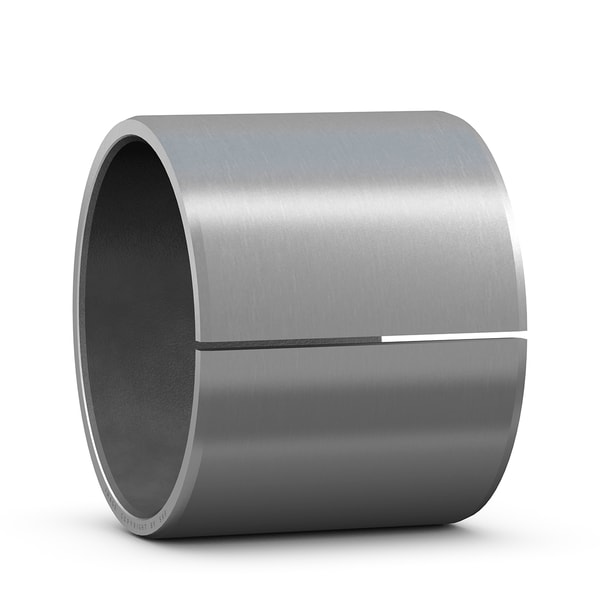

SKF PCM 040504 E/VB055
PTFE composite straight bushing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
4.0 mm
Bore diameter
D
5.5 mm
Outside diameter
B
4.0 mm
Width
c1
0.1 mm
Length chamfer bore - axial direction
c1
0.4 mm
Length chamfer bore - axial direction
c2
0.2 mm
Length chamfer outside diameter - axial direction
c2
0.8 mm
Length chamfer outside diameter - axial direction
mass
0.0003 kg
Product net weight
