SKF PCM 12012560 M
POM composite straight bushing
Dimensions

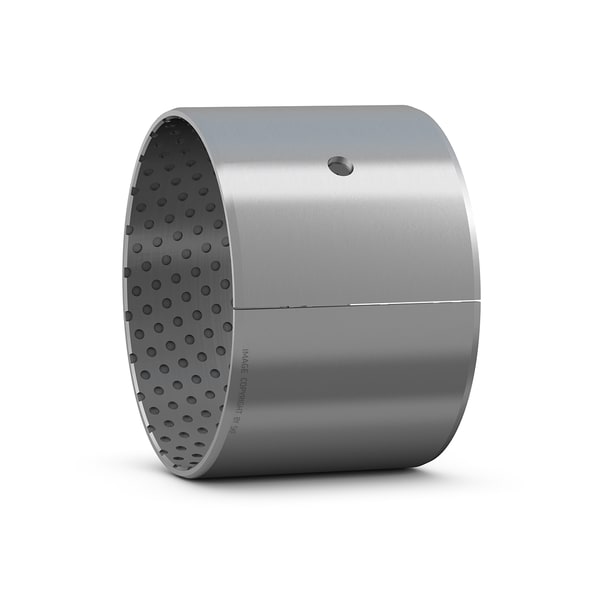

SKF PCM 12012560 M POM Composite Straight Bushing
The PCM 12012560 M is an SKF POM composite straight bushing within the bushings, thrust washers and strips product series. The supplied data identifies the item by its model, brand, product type, and category path.
What is the PCM 12012560 M?
It is a straight bushing described as a POM composite design. It is listed under SKF plain bearing products in the bushing, thrust washer, and strip series.
PCM 12012560 M Dimensions and Weight
The supplied dimensional data for the PCM 12012560 M is listed below. Additional design details include an 8.0 mm lubrication-hole diameter and specified chamfer dimensions.
- Bore diameter d: 120.0 mm
- Outside diameter D: 125.0 mm
- Width B: 60.0 mm
- Lubrication hole diameter M: 8.0 mm
- Dimension c1: 0.2 mm
- Chamfer lengths: 1.0 mm, 0.8 mm, and 1.6 mm as supplied
- Product net weight: 0.355 kg
What are the bushing's main measurements?
The PCM 12012560 M has a 120.0 mm bore, a 125.0 mm outside diameter, and a 60.0 mm width. The supplied product net weight is 0.355 kg.
Supplied Technical Values for the SKF Bushing
The product data also includes a technical value of 850.0 kN. No interpretation beyond the supplied data is assigned to this value, and no load-rating classification or performance claim is added.
- Model: PCM 12012560 M
- Brand: SKF
- Product series: Bushings, thrust washers and strips
- Description: POM composite straight bushing
- Supplied value: 850.0 kN
What technical information is provided?
The supplied record provides model and brand identification, dimensions, weight, lubrication-hole and chamfer data, and an 850.0 kN value. Details not present in the product data are not stated.
