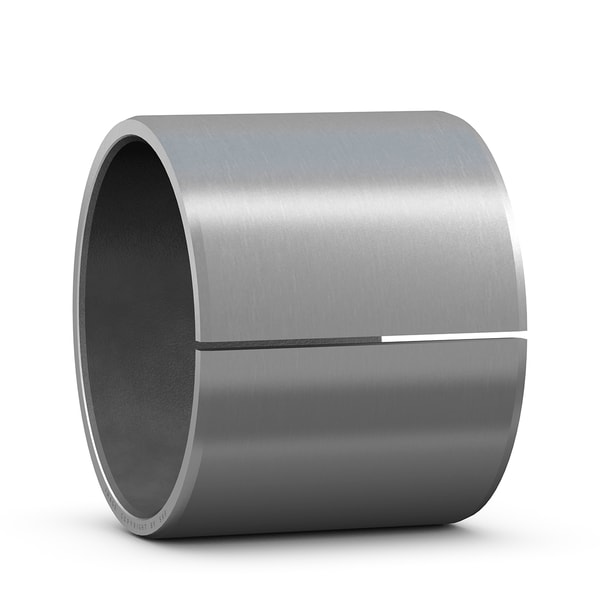

SKF PCM 131510 E
PTFE composite straight bushing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
13.0 mm
Bore diameter
D
15.0 mm
Outside diameter
B
10.0 mm
Width
c1
0.1 mm
Length chamfer bore - axial direction
c1
0.6 mm
Length chamfer bore - axial direction
c2
0.2 mm
Length chamfer outside diameter - axial direction
c2
1.0 mm
Length chamfer outside diameter - axial direction
mass
0.0032 kg
Product net weight
