SKF PCM 19019560 M

Bushings, thrust washers and strips

POM composite straight bushing

(BRAND)：SKF

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

Detailed data of

PCM 19019560 M

Bushings, thrust washers and strips

Dimensions

d 190.0 mm Bore diameter

D 195.0 mm Outside diameter

B 60.0 mm Width

M 8.0 mm Diameter lubrication hole

c₁ 0.2 mm Length chamfer bore - axial direction

c₁ 1.0 mm Length chamfer bore - axial direction

c₂ 0.8 mm Length chamfer outside diameter - axial direction

c₂ 1.6 mm Length chamfer outside diameter - axial direction

mass 0.66 kg Product net weight

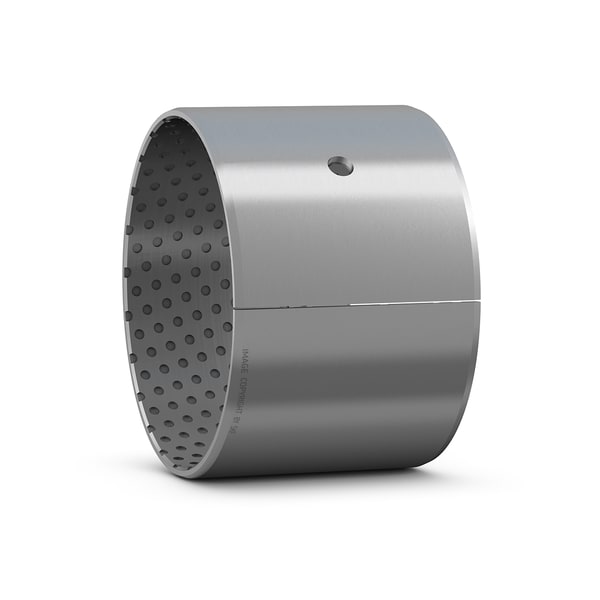

The SKF PCM 19019560 M Is a POM Composite Straight Bushing

The PCM 19019560 M is an SKF product within the Bushings, thrust washers and strips series. It is identified in the supplied data as a POM composite straight bushing for plain bearing product selection.

What type of bearing component is this model?

This component is a straight bushing associated with SKF plain bearings. Its product series is listed as Bushings, thrust washers and strips.

The Bushing Has Stated 190 mm, 195 mm, and 60 mm Dimensions

The supplied dimensional data lists a bore diameter of 190.0 mm, an outside diameter of 195.0 mm, and a width of 60.0 mm. Additional listed values include an 8.0 mm diameter for the lubrication hole and chamfer dimensions for bore and outside-diameter axial locations.

Bore diameter d: 190.0 mm
Outside diameter D: 195.0 mm
Width B: 60.0 mm
Lubrication hole diameter M: 8.0 mm
Additional listed values: c1 0.2 mm; c1 1.0 mm; c2 0.8 mm; c2 1.6 mm

What are the model’s main identifying dimensions?

The main dimensions provided are a 190.0 mm bore, 195.0 mm outside diameter, and 60.0 mm width. These dimensions should be checked against the intended assembly requirements before selection.

The Supplied Product Data Includes Mass and a Load Value

The product net weight is listed as 0.66 kg. The supplied data also includes a value of 1340.0 kN; no load-rating designation or interpretation is provided in the source data, so it should be verified against official product documentation before use in a design calculation.

Brand: SKF
Model: PCM 19019560 M
Series: Bushings, thrust washers and strips
Description: POM composite straight bushing
Product net weight: 0.66 kg
Supplied kN value: 1340.0 kN

What weight and additional numeric product information are provided?

The listed net mass is 0.66 kg. A 1340.0 kN figure is also present in the supplied data, but its exact technical meaning is not specified, so it should not be treated as a certified load rating without confirmation.
