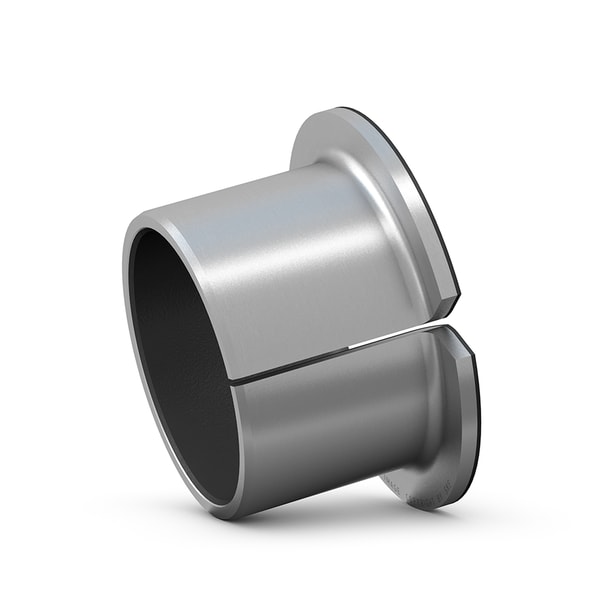

SKF PCMF 353926 E
PTFE composite flanged bushing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
35.0 mm
Bore diameter
D
39.0 mm
Outside diameter
B
26.0 mm
Width
D1
47.0 mm
Outside diameter flange
B1
2.0 mm
Width flange
c1
0.1 mm
Length chamfer bore - axial direction
c1
0.7 mm
Length chamfer bore - axial direction
c2
0.6 mm
Length chamfer outside diameter - axial direction
c2
1.4 mm
Length chamfer outside diameter - axial direction
r
2.0 mm
Radius flange/bushing outside diameter
mass
0.051 kg
Product net weight
