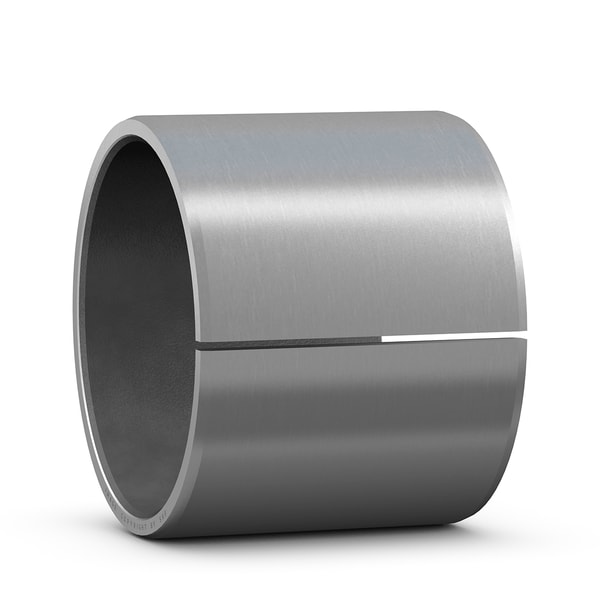

SKF PCZ 1014 E
PTFE composite straight bushing, inch size
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
15.875 mm
Bore diameter
D
18.256 mm
Outside diameter
B
22.2 mm
Width
c1
0.1 mm
Length chamfer bore - axial direction
c1
0.6 mm
Length chamfer bore - axial direction
c2
0.2 mm
Length chamfer outside diameter - axial direction
c2
1.0 mm
Length chamfer outside diameter - axial direction
mass
0.01 kg
Product net weight
