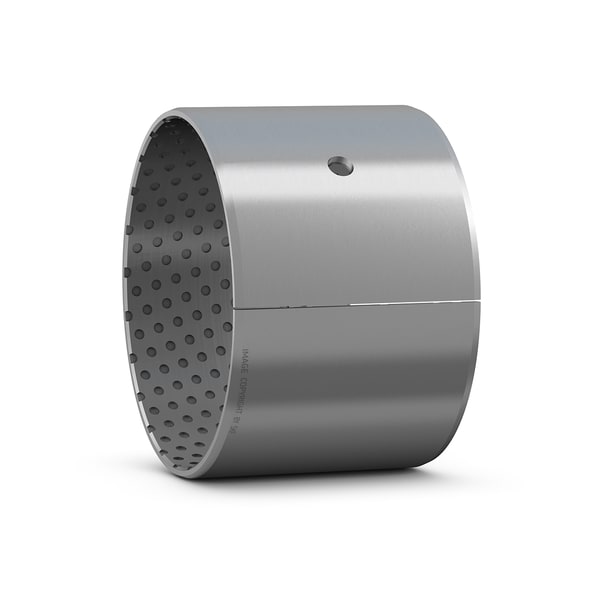

SKF PCZ 1616 M
POM composite straight bushing, inch size
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
25.4 mm
Bore diameter
D
28.575 mm
Outside diameter
B
25.4 mm
Width
M
4.0 mm
Diameter lubrication hole
c1
0.1 mm
Length chamfer bore - axial direction
c1
0.7 mm
Length chamfer bore - axial direction
c2
0.2 mm
Length chamfer outside diameter - axial direction
c2
1.0 mm
Length chamfer outside diameter - axial direction
mass
0.022 kg
Product net weight
