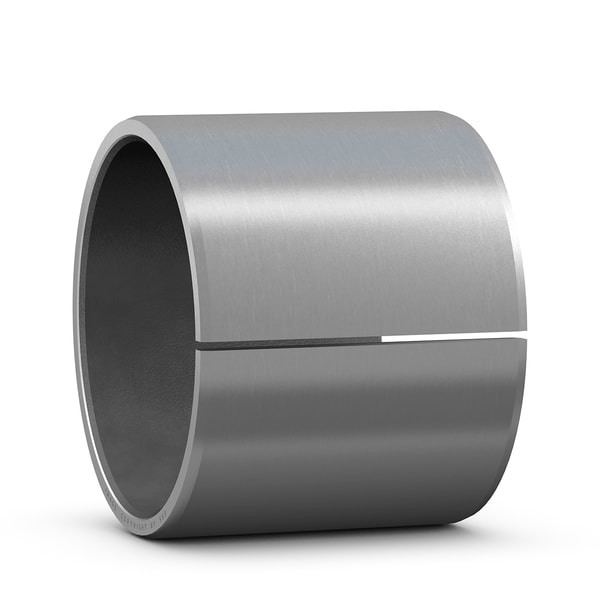

SKF PCZ 2416 E
PTFE composite straight bushing, inch size
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
38.1 mm
Bore diameter
D
42.069 mm
Outside diameter
B
25.4 mm
Width
c1
0.1 mm
Length chamfer bore - axial direction
c1
0.7 mm
Length chamfer bore - axial direction
c2
0.8 mm
Length chamfer outside diameter - axial direction
c2
1.6 mm
Length chamfer outside diameter - axial direction
mass
0.048 kg
Product net weight
