SKF PCZ 2832 M

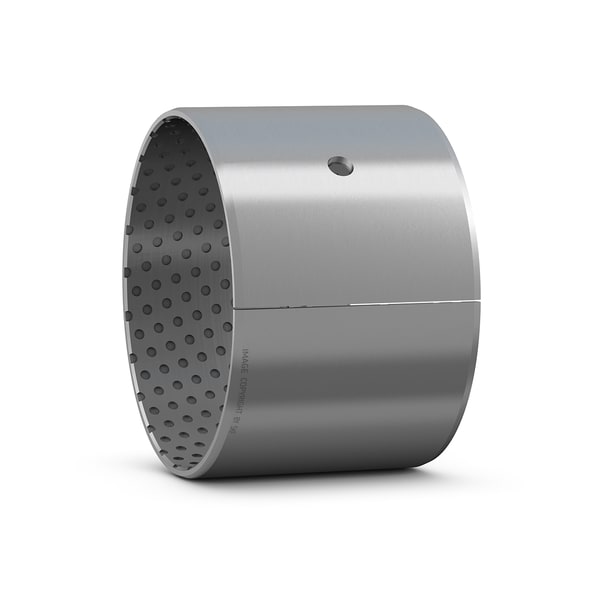

POM composite straight bushing, inch size
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
44.45 mm
Bore diameter
D
49.213 mm
Outside diameter
B
50.8 mm
Width
M
5.0 mm
Diameter lubrication hole
c1
0.2 mm
Length chamfer bore - axial direction
c1
1.0 mm
Length chamfer bore - axial direction
c2
1.2 mm
Length chamfer outside diameter - axial direction
c2
2.4 mm
Length chamfer outside diameter - axial direction
mass
0.14 kg
Product net weight
