SKF PGR 115X109X13-PF

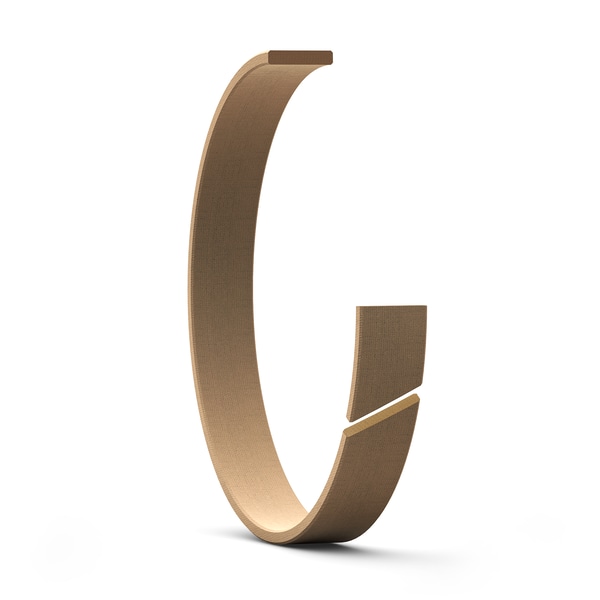

Guide ring
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
109.0 mm
Inside diameter
D
115.0 mm
Outside diameter
L
13.0 mm
Groove width
t
3.0 mm
Guide ring thickness
R
0.3 mm
Groove radius
r
0.2 mm
Retainer radius
h
1.5 mm
Retainer height
mass
0.0163 kg
Product net weight
