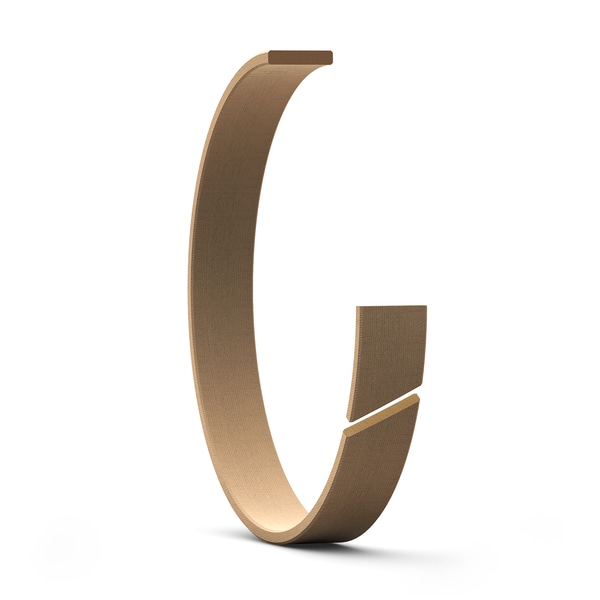

SKF PGR 220X214X19.5-PF
Guide ring
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
214.0 mm
Inside diameter
D
220.0 mm
Outside diameter
L
19.5 mm
Groove width
t
3.0 mm
Guide ring thickness
R
0.3 mm
Groove radius
r
0.2 mm
Retainer radius
h
1.5 mm
Retainer height
mass
0.0495 kg
Product net weight
