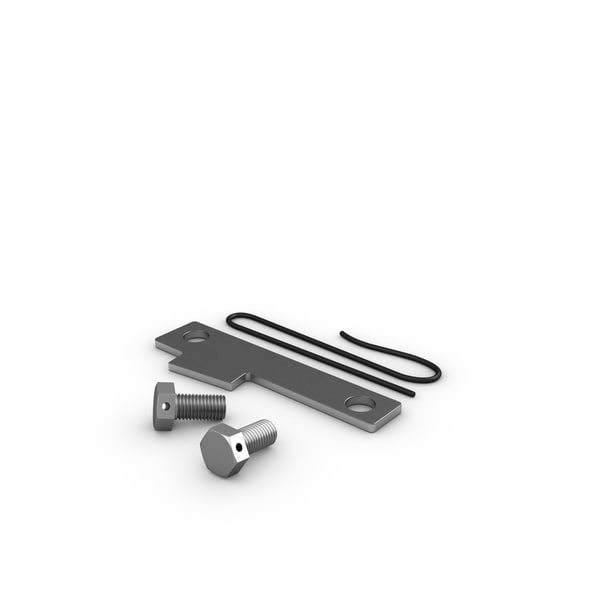

SKF PL 560
Locking plate for inch lock nuts
(BRAND)：SKF
(Availability)：In Stock
Dimensions
L
190.5 mm
Length
A1
47.625 mm
Width
A2
33.325 mm
Width for locking
A3
42.875 mm
Key width
B
3.969 mm
Thickness material
mass
0.4 kg
Product net weight
SKF PL 560 Locking Plate for Inch Lock Nuts
What is the PL 560?
The PL 560 is an SKF locking plate designed for use with inch lock nuts. It belongs to the lock nuts and locking devices product series and is listed within bearing accessories.
Provided PL 560 Dimension and Mass Details
What measurements are supplied for this product?
The available product data lists the following details for the PL 560:
- Length L: 190.5 mm
- Width A1: 47.625 mm
- Width A2: 33.325 mm
- Width for locking A3: 42.875 mm
- Key width B: 3.969 mm
- Product net weight: 0.4 kg
PL 560 Product Classification Information
How is the SKF PL 560 categorized?
The PL 560 is categorized under Brand > SKF > Bearings > Bearing accessories > Lock nuts and locking devices. The supplied description identifies it as a locking plate for inch lock nuts; additional application or compatibility details should be confirmed against the relevant product documentation.
