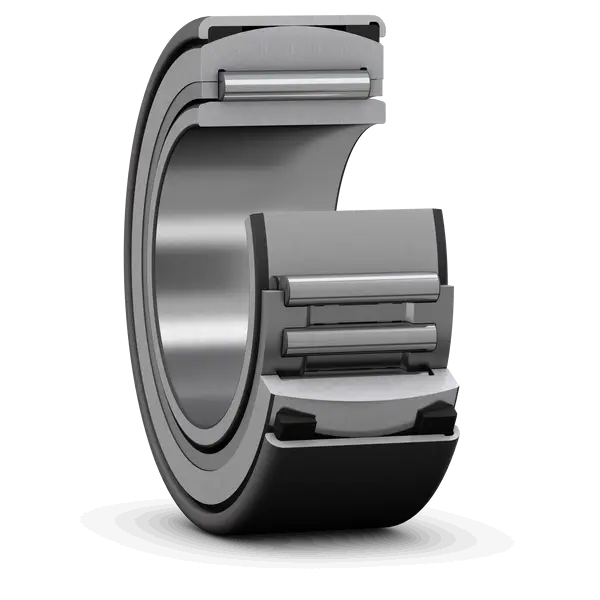

SKF PNA 25/47
Alignment needle roller bearing, with an inner ring
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
25.0 mm
Bore diameter
D
47.0 mm
Outside diameter
B
20.0 mm
Width
F
30.0 mm
Raceway diameter inner ring
D1
42.0 mm
Shoulder diameter sleeve
r
0.8 mm
Chamfer dimension sheet steel sleeve
r1,2
0.3 mm
Chamfer dimension inner ring
s
0.5 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
mass
0.157 kg
Product net weight
