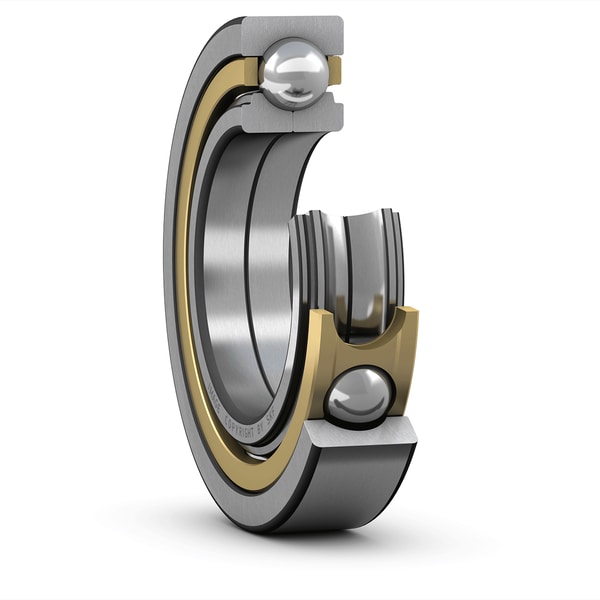

SKF QJ 1064 MA
Four-point contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
320.0 mm
Bore diameter
D
480.0 mm
Outside diameter
B
74.0 mm
Width
d1
376.0 mm
Shoulder diameter inner ring
D1
424.0 mm
Shoulder diameter outer ring/ inner diameter housing washer
a
280.0 mm
Distance pressure point(s)
r1,2
5.0 mm
Chamfer dimension inner ring
mass
46.0 kg
Product net weight
