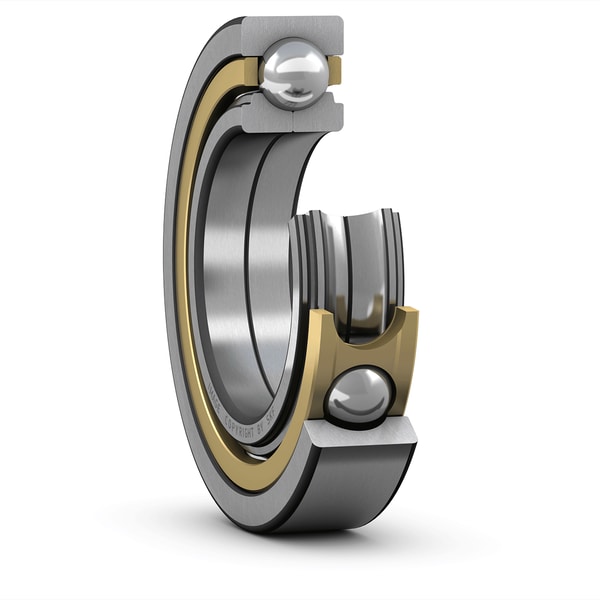

SKF QJ 210 MA
Four-point contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
50.0 mm
Bore diameter
D
90.0 mm
Outside diameter
B
20.0 mm
Width
d1
59.5 mm
Shoulder diameter inner ring
D1
76.5 mm
Shoulder diameter outer ring/ inner diameter housing washer
a
49.0 mm
Distance pressure point(s)
r1,2
1.1 mm
Chamfer dimension inner ring
mass
0.561 kg
Product net weight
