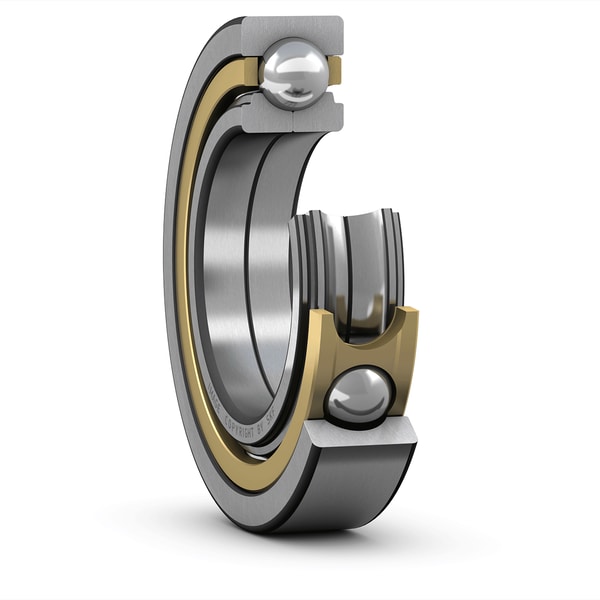

SKF QJ 304 MA
Four-point contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
20.0 mm
Bore diameter
D
52.0 mm
Outside diameter
B
15.0 mm
Width
d1
27.8 mm
Shoulder diameter inner ring
D1
40.8 mm
Shoulder diameter outer ring/ inner diameter housing washer
a
25.0 mm
Distance pressure point(s)
r1,2
1.1 mm
Chamfer dimension inner ring
mass
0.177 kg
Product net weight
