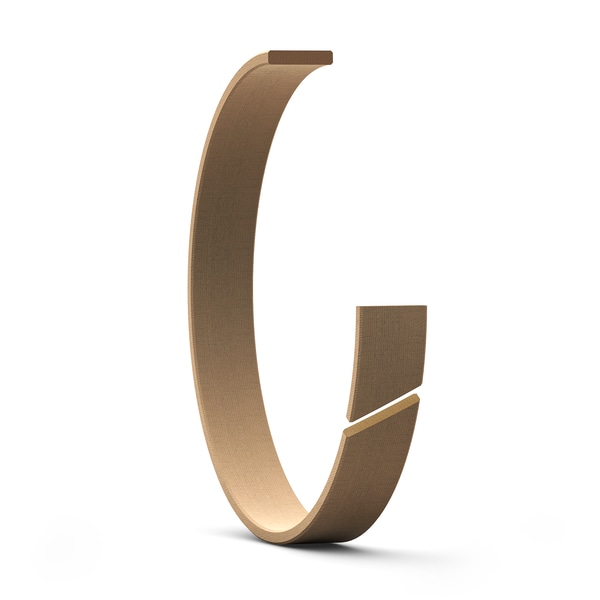

SKF RGR 20X24X5.6-PF
Guide ring
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
20.0 mm
Inside diameter
D
24.0 mm
Outside diameter
L
5.6 mm
Groove width
t
2.0 mm
Guide ring thickness
R
0.3 mm
Groove radius
r
0.2 mm
Retainer radius
h
1.0 mm
Retainer height
mass
0.1 kg
Product net weight
