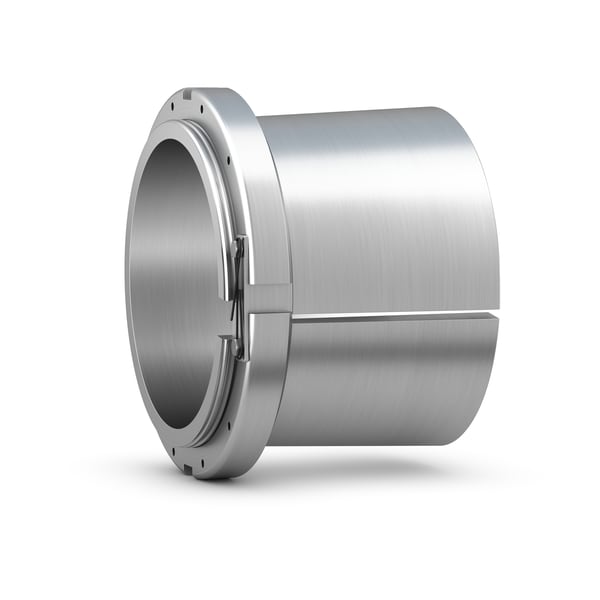

SKF SNP 3072X13.7/16
Adapter sleeve with N lock nut and PL locking plate, inch dimensions
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d1
341.313 mm
Bore diameter
d
360.0 mm
Outside diameter small taper
d3
419.227 mm
Outside diameter lock nut
B1
192.253 mm
Width
B
45.491 mm
Width lock nut
B5
55.016 mm
Width lock nut including locking plate
mass
39.1 kg
Product net weight
