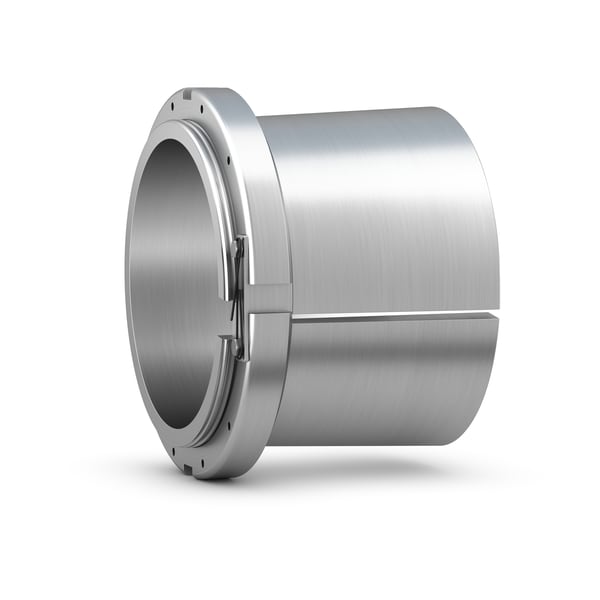

SKF SNP 3088X16.1/2
Adapter sleeve with N lock nut and PL locking plate, inch dimensions
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d1
419.1 mm
Bore diameter
d
440.0 mm
Outside diameter small taper
d3
520.827 mm
Outside diameter lock nut
B1
231.14 mm
Width
B
60.579 mm
Width lock nut
B5
73.812 mm
Width lock nut including locking plate
mass
50.0 kg
Product net weight
