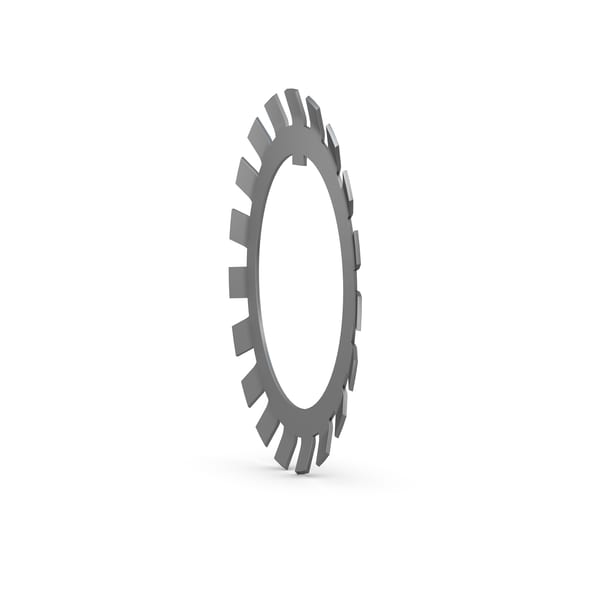

SKF W 03
Lock washer for inch lock nuts
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
17.247 mm
Bore diameter
d1
24.587 mm
Side face diameter
d2
33.731 mm
Outside diameter over tabs
B
0.813 mm
Thickness material
f
3.048 mm
Width inner tab
M
15.418 mm
Inside dimension under inner tab
V
1.575 mm
Projection of key tang
mass
0.0038 kg
Product net weight
