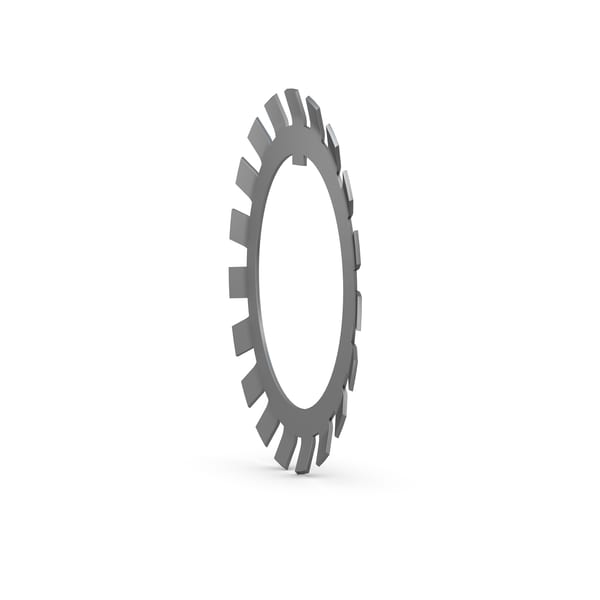

SKF W 04
Lock washer for inch lock nuts
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
20.345 mm
Bore diameter
d1
29.337 mm
Side face diameter
d2
38.887 mm
Outside diameter over tabs
B
0.813 mm
Thickness material
f
4.47 mm
Width inner tab
M
18.517 mm
Inside dimension under inner tab
V
1.575 mm
Projection of key tang
mass
0.0051 kg
Product net weight
