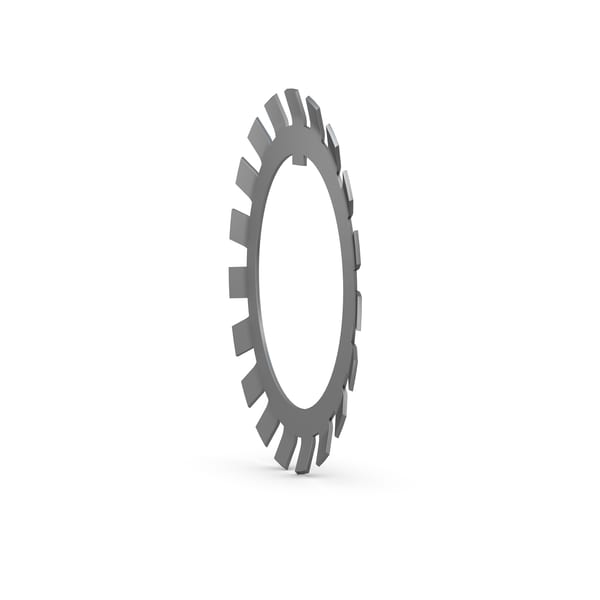

SKF W 06
Lock washer for inch lock nuts
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
30.302 mm
Bore diameter
d1
38.862 mm
Side face diameter
d2
48.819 mm
Outside diameter over tabs
B
1.016 mm
Thickness material
f
4.47 mm
Width inner tab
M
27.762 mm
Inside dimension under inner tab
V
2.388 mm
Projection of key tang
mass
0.0075 kg
Product net weight
