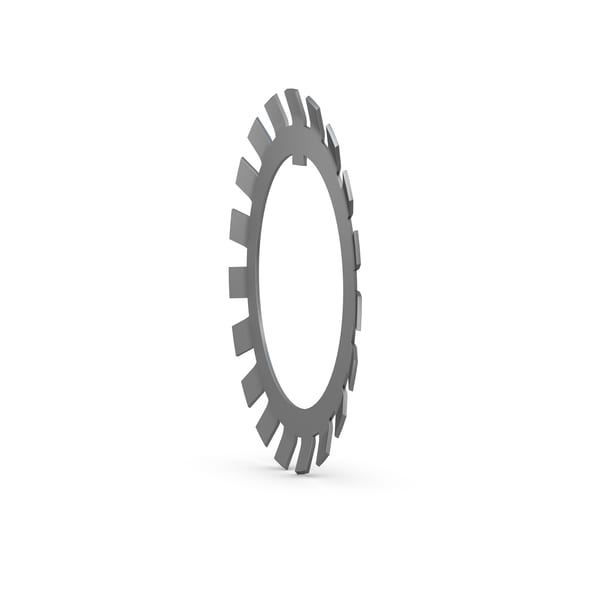

SKF W 09
Lock washer for inch lock nuts
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
45.517 mm
Bore diameter
d1
58.699 mm
Side face diameter
d2
69.444 mm
Outside diameter over tabs
B
1.219 mm
Thickness material
f
7.366 mm
Width inner tab
M
42.85 mm
Inside dimension under inner tab
V
3.175 mm
Projection of key tang
mass
0.018 kg
Product net weight
