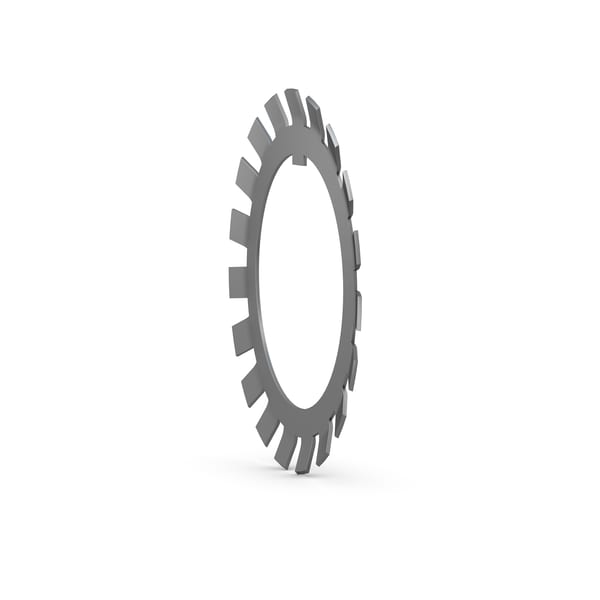

SKF W 19
Lock washer for inch lock nuts
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
96.52 mm
Bore diameter
d1
116.662 mm
Side face diameter
d2
132.563 mm
Outside diameter over tabs
B
2.134 mm
Thickness material
f
8.966 mm
Width inner tab
M
92.354 mm
Inside dimension under inner tab
V
4.775 mm
Projection of key tang
mass
0.09 kg
Product net weight
