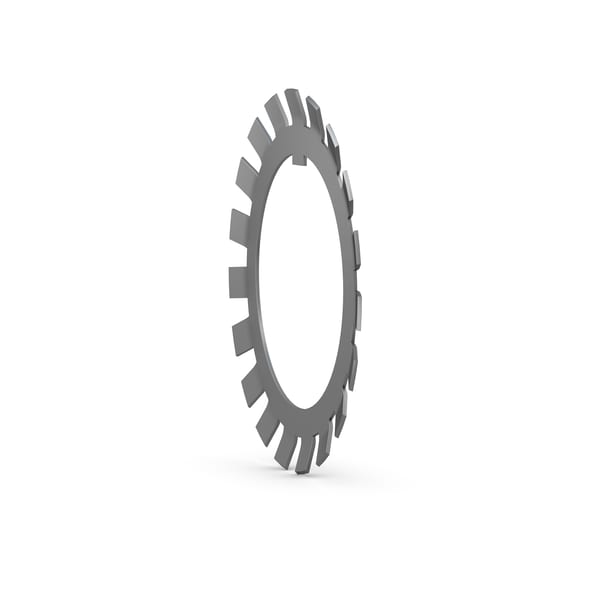

SKF W 22
Lock washer for inch lock nuts
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
111.633 mm
Bore diameter
d1
134.899 mm
Side face diameter
d2
154.0 mm
Outside diameter over tabs
B
2.921 mm
Thickness material
f
8.966 mm
Width inner tab
M
106.299 mm
Inside dimension under inner tab
V
6.35 mm
Projection of key tang
mass
0.146 kg
Product net weight
