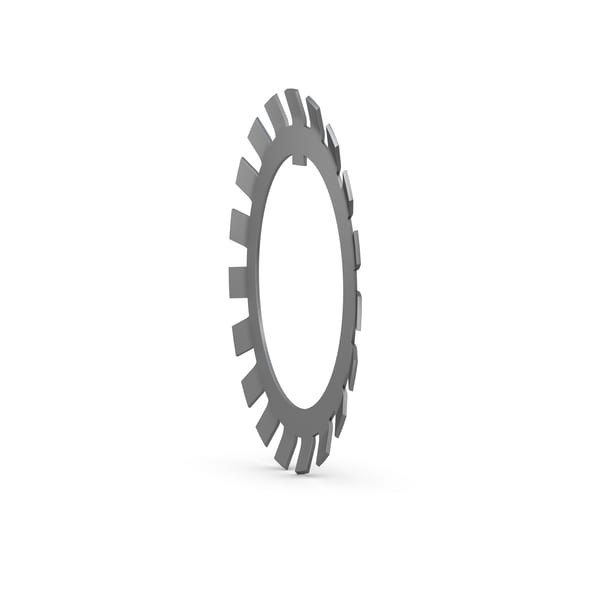

SKF W 34
Lock washer for inch lock nuts
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
171.806 mm
Bore diameter
d1
204.749 mm
Side face diameter
d2
230.2 mm
Outside diameter over tabs
B
3.708 mm
Thickness material
f
18.161 mm
Width inner tab
M
165.176 mm
Inside dimension under inner tab
V
7.95 mm
Projection of key tang
mass
0.44 kg
Product net weight
