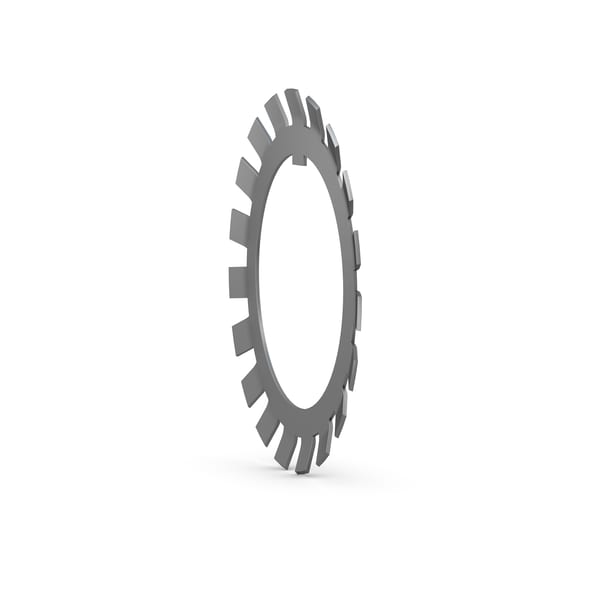

SKF W 38
Lock washer for inch lock nuts
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
192.456 mm
Bore diameter
d1
223.799 mm
Side face diameter
d2
250.825 mm
Outside diameter over tabs
B
3.708 mm
Thickness material
f
18.161 mm
Width inner tab
M
185.826 mm
Inside dimension under inner tab
V
7.95 mm
Projection of key tang
mass
0.506 kg
Product net weight
