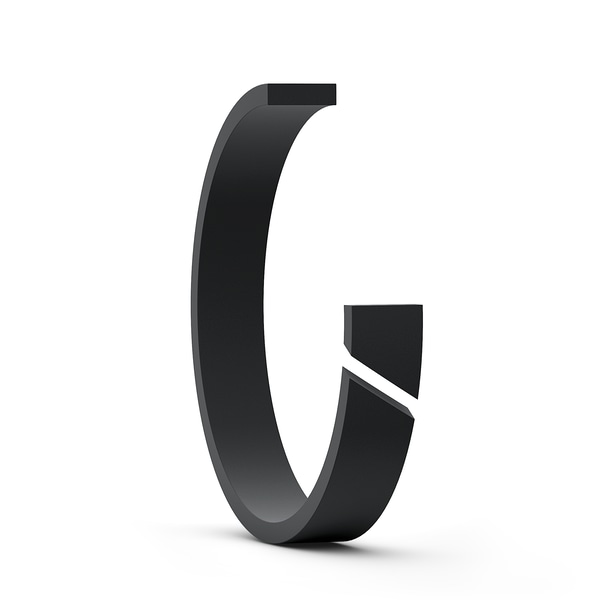

SKF WAT-137X145X9.8-E8D
Guide ring
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
137.0 mm
Inside diameter
D
145.0 mm
Outside diameter
L
9.8 mm
Groove width
t
4.0 mm
Guide ring thickness
R
0.6 mm
Groove radius
r
0.2 mm
Retainer radius
h
2.0 mm
Retainer height
mass
0.0244 kg
Product net weight
