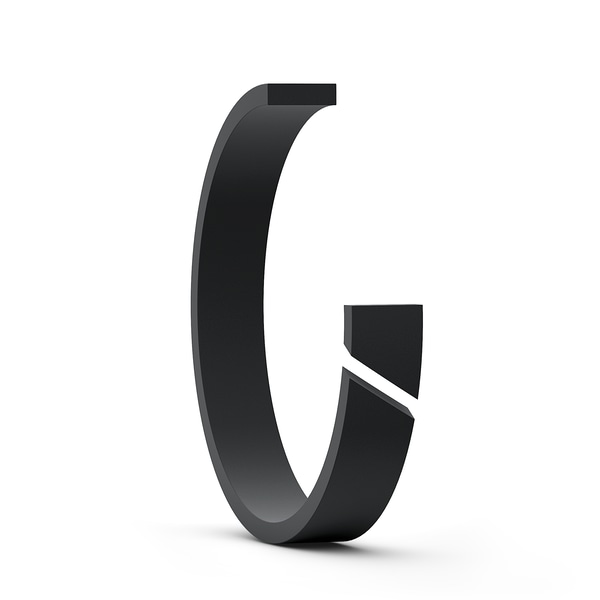

SKF WAT-183X190X14-E8D
Guide ring
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
183.0 mm
Inside diameter
D
190.0 mm
Outside diameter
L
14.0 mm
Groove width
t
3.5 mm
Guide ring thickness
R
0.6 mm
Groove radius
r
0.2 mm
Retainer radius
h
1.75 mm
Retainer height
mass
0.0407 kg
Product net weight
