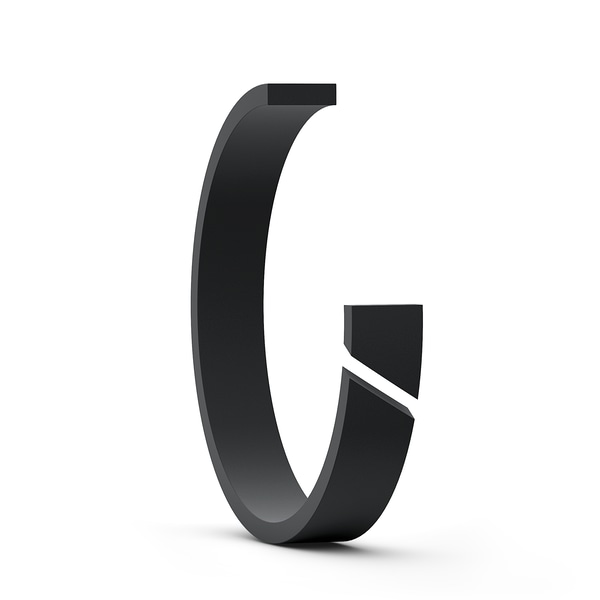

SKF WAT-217X225X50-E8D
Guide ring
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
217.0 mm
Inside diameter
D
225.0 mm
Outside diameter
L
50.0 mm
Groove width
t
4.0 mm
Guide ring thickness
R
0.6 mm
Groove radius
r
0.2 mm
Retainer radius
h
2.0 mm
Retainer height
mass
0.406 kg
Product net weight
