SKF WAT93-3500-312-E8D

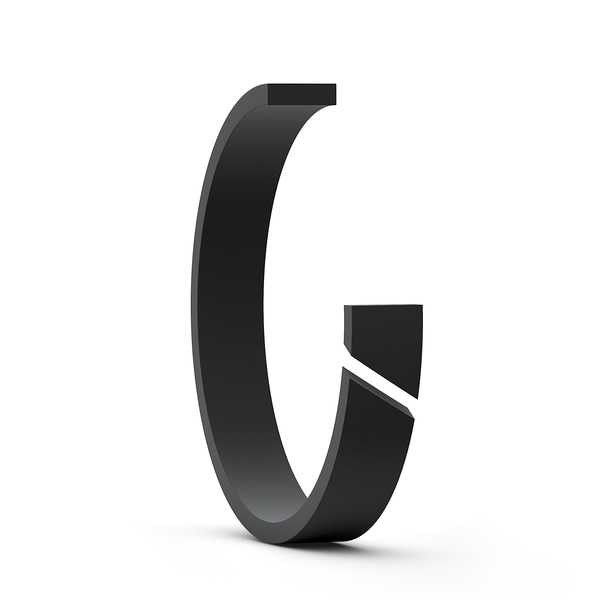

Guide ring
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
84.15 mm
Inside diameter
D
88.9 mm
Outside diameter
L
8.18 mm
Groove width
t
2.36 mm
Guide ring thickness
R
0.6 mm
Groove radius
r
0.2 mm
Retainer radius
h
1.18 mm
Retainer height
mass
0.0074 kg
Product net weight
