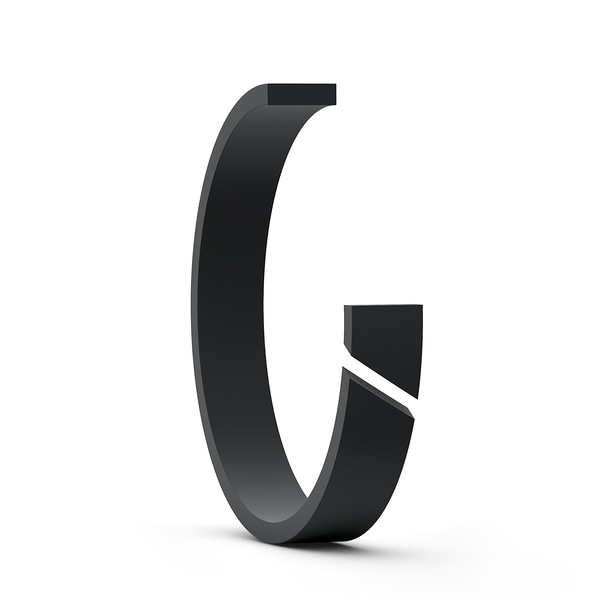

SKF WAT93-4000-2000-E8D
Guide ring
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
96.85 mm
Inside diameter
D
101.6 mm
Outside diameter
L
51.05 mm
Groove width
t
2.36 mm
Guide ring thickness
R
0.6 mm
Groove radius
r
0.2 mm
Retainer radius
h
1.18 mm
Retainer height
mass
0.0542 kg
Product net weight
