SKF WGT-94X100X12.8-E8D

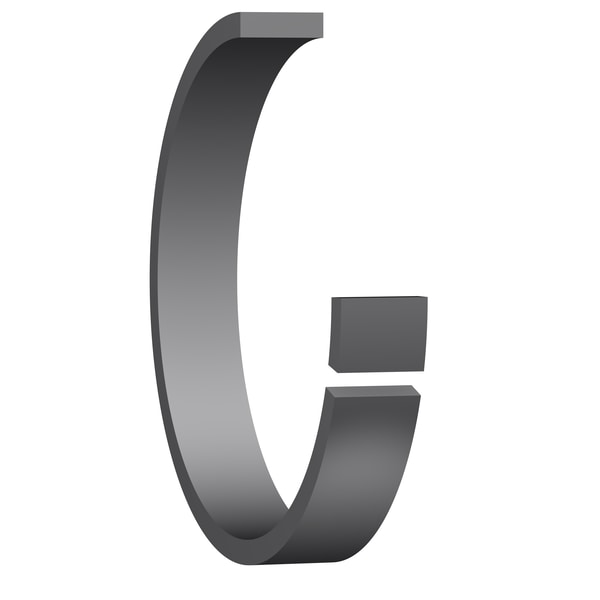

Guide ring
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
94.0 mm
Inside diameter
D
100.0 mm
Outside diameter
L
12.8 mm
Groove width
t
3.0 mm
Guide ring thickness
R
0.6 mm
Groove radius
r
0.2 mm
Retainer radius
h
1.5 mm
Retainer height
mass
0.0166 kg
Product net weight
