SKF ZBR500-6500-750-E6W

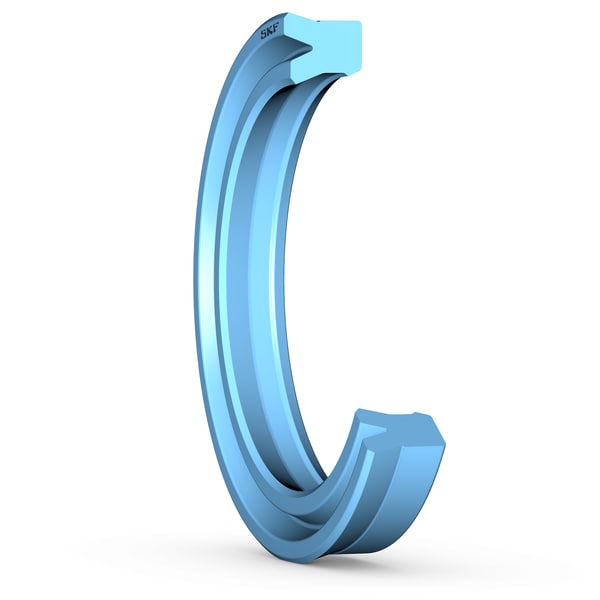

Hydraulic rod bump-heel U-cup seal
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
165.1 mm
Rod diameter
D
190.5 mm
Housing groove diameter
L
20.96 mm
Housing groove width
S
12.7 mm
Radial depth
R
0.89 mm
Groove radius
C
15.88 mm
Lead-in chamfer length
mass
0.14 kg
Product net weight
