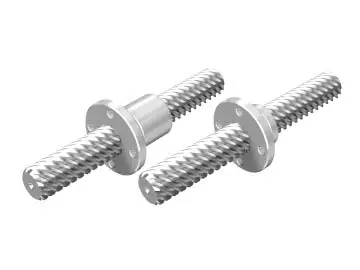

The THK Change Nut represents a significant advancement in recirculating ball screw technology, designed for applications demanding high precision, exceptional repeatability, and minimal axial clearance. This specialized nut is engineered to eliminate backlash, a critical parameter defined as the axial displacement between the screw shaft and the nut under zero load. The core of its design lies in a unique, pre-loaded double-nut configuration. Two single nuts are assembled together with a spacer that creates a precise preload, effectively pressing the ball tracks within each nut against the screw shaft’s flanks in opposite directions. This action cancels out any potential dead zone, ensuring immediate and precise response to rotational input without any lost motion. The construction often utilizes high-grade carbon chromium bearing steel, heat-treated to achieve superior hardness and long-term dimensional stability, while the precision-ground balls provide smooth, low-friction motion.
Key technical features that define its performance include its adjustable preload mechanism, which allows for fine-tuning to achieve near-zero backlash, a critical factor for positional accuracy. The nut is designed for optimal ball recirculation, minimizing vibration and noise even at high speeds. Its compact and rigid design ensures high stiffness, capable of withstanding significant axial loads and moments. The performance advantages are substantial, translating directly into enhanced machining quality, improved surface finishes on workpieces, and superior contouring accuracy in CNC applications. By eliminating backlash, the system exhibits exceptional responsiveness and control, which is paramount for high-speed, high-acceleration cycles. This results in reduced cycle times, higher throughput, and improved overall equipment efficiency. Furthermore, the robust construction and high load capacity contribute to extended service life and reduced maintenance requirements, even in demanding operating environments.
Typical applications for the THK Change Nut are found wherever uncompromising precision and rigidity are non-negotiable. In industrial machinery, it is indispensable for high-performance CNC machining centers, where it drives axes in milling, turning, and grinding operations, ensuring the accurate reproduction of complex geometries. It is equally critical in precision assembly robots and pick-and-place systems, where repeatable positioning is essential for product quality. Within the automotive manufacturing sector, these components are integral to automated welding arms, precision laser cutting systems for body panels, and high-speed transfer lines for engine component machining. In the realm of precision equipment, the THK Change Nut is a cornerstone technology for semiconductor manufacturing apparatus, including wafer steppers and wire bonders, where movements measured in microns are standard. It is also vital in precision optical positioning systems, medical device manufacturing equipment, and coordinate measuring machines (CMMs), where its ability to maintain accuracy under varying loads ensures reliable and trustworthy measurement and production outcomes.
