Timken 11162 – 11300-B
Tapered Roller Bearings - TSF (Tapered Single with Flange) Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
11162 – 11300-B
Specifications
Series
11000
Cone Part Number
11162
Cup Part Number
11300-B
Design Unit
Inch
Cage Material
Stamped Steel

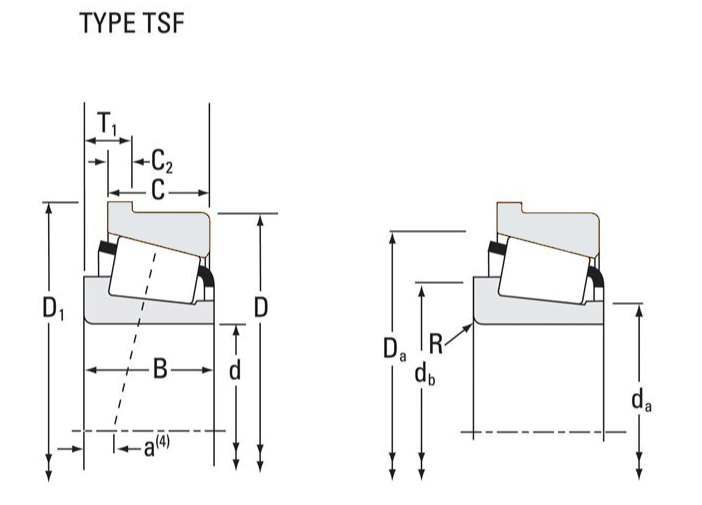

Dimensions
d - Bore
41.275 mm
D - Cup Outer Diameter
76.2 mm
D1 - Flange Outer Diameter
80.863 mm
B - Cone Width
17.384 mm
C - Cup Width
14.288 mm
C1 - Cup Flange Width
3.571 mm
T1 - Bearing Width to Flange
7.292 mm
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
1.5 mm
r - Cup Backface "To Clear" Radius2
1.5 mm
da - Cone Frontface Backing Diameter
46.5 mm
db - Cone Backface Backing Diameter
49 mm
Da - Cup Frontface Backing Diameter
73.90 mm
Ab - Cage-Cone Frontface Clearance
2.3 mm
Aa - Cage-Cone Backface Clearance
1 mm
a - Effective Center Location3
-0.8 mm
Basic Load Ratings
C90 - Dynamic Radial Rating (90 million revolutions)4
12500 N
C1 - Dynamic Radial Rating (1 million revolutions)5
48100 N
C0 - Static Radial Rating
55100 N
C6
10400 N
Factors
K - Factor7
1.2
e - ISO Factor8
0.49
Y - ISO Factor9
1.23
G1 - Heat Generation Factor (Roller-Raceway)
19.2
G2 - Heat Generation Factor (Rib-Roller End)
12.8
Cg - Geometry Factor10
0.0735
