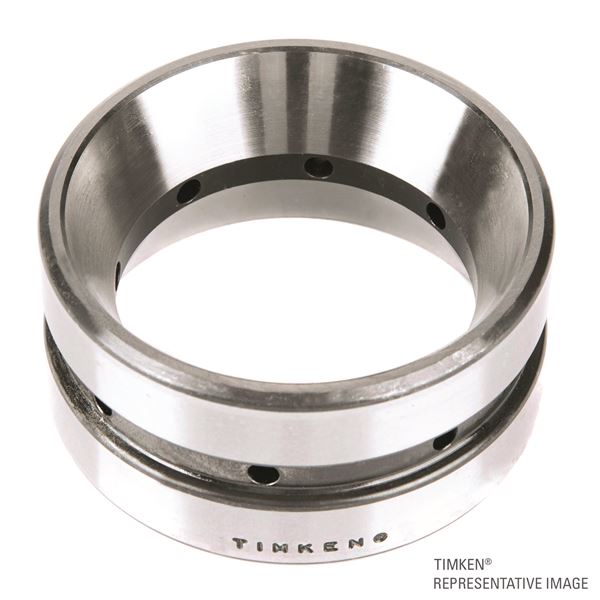

Timken 147198D
Tapered Roller Bearings - Double Tapered Cup - Imperial
(BRAND)：TIMKEN
(Availability)：In Stock
Specifications
Series
147000
Cup Part Number
147198D
Design Units
Imperial
Dimensions
D - Cup Outer Diameter
501.650 mm
C - Double Cup Width
120.65 mm
Abutment and Fillet Dimensions
r - Cup Backface "To Clear" Radius1
3.30 mm
Da - Cup Frontface Backing Diameter
468.12 mm
Factors
K - Factor2
0.7
e - ISO Factor3
0.83
Y1 - ISO Factor4
0.81
Y2 - ISO Factor5
1.2
G1 - Heat Generation Factor (Roller-Raceway)
1490
G2 - Heat Generation Factor (Rib-Roller End)
138
Cg - Geometry Factor6
0.195
