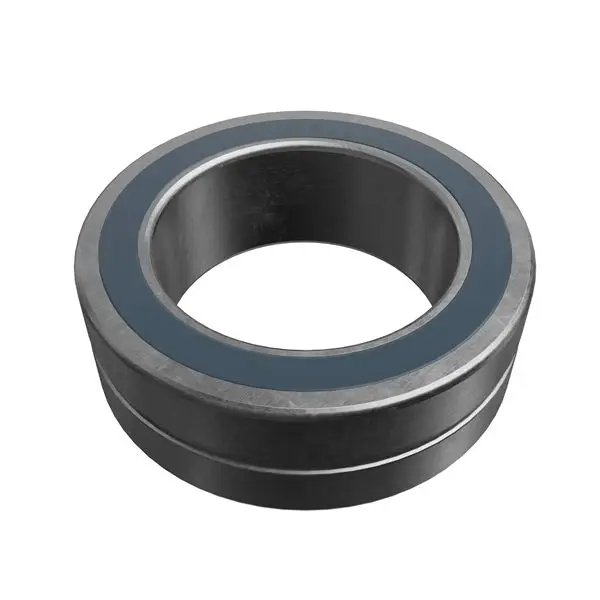

Timken 22205EJW33C3VSL609
Spherical Roller Bearings - Solid Lube
(BRAND)：TIMKEN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications
Design Unit
Metric
d - Bore
25 mm
Lubrication Type
Industrial Grade Solid Lube
Cage Type
EJ
Cage Material
Steel
Factors
Maximum Operating Speed
2210 rpm
e - ISO Factor1
0.34
Y0 - ISO Factor2
1.96
Y1 - ISO Factor3
2
Y2 - ISO Factor4
2.98
Cg - Geometry Factor5
0.0325
Dimensions
D - Outer Diameter
52 mm
B' - Inner Ring Width
18 mm
B - Outer Ring Width
18 mm
Abutment and Fillet Dimensions
R - Inner Ring "To Clear" Radius6
1 mm
r - Outer Ring "To Clear" Radius7
1 mm
da - Inner Ring Backing Diameter
30.000 mm
Da - Outer Ring Backing Diameter
47.000 mm
Basic Load Ratings
C0 - Static Radial Rating
50600 N
C1(2) - Dynamic Radial Rating (Two-Rows)
43100 N
